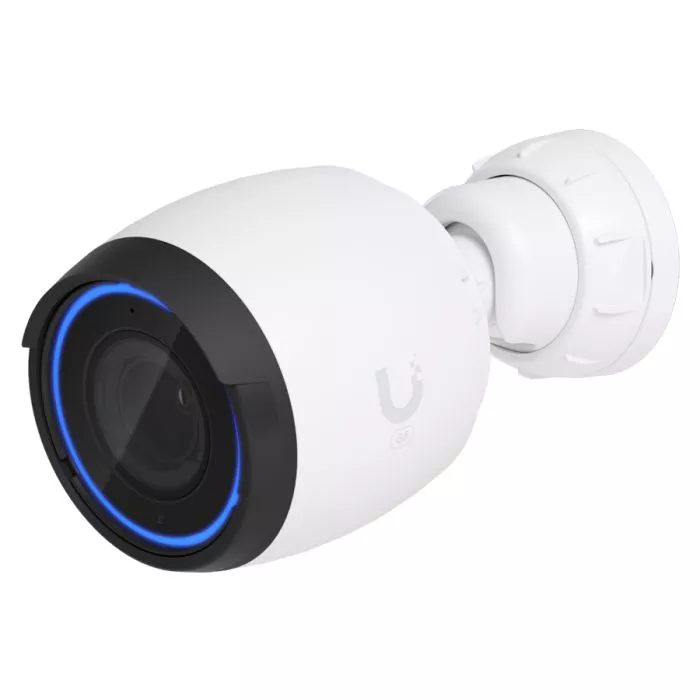

Ubiquiti's UVC-G5PRO features an 8MP image with a built-in microphone, 3x optical zoom and AI event detection. It is also IP65 rated with a versatile 3-axis mount for both indoor and outdoor installations. The camera has infrared LEDs with an automatic IR cut filter for both day and night surveillance up to 25 meters.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed Focal Length
Max Frame Rate: 30 FPS (Resolution Dependent)
Microphone: Yes
Max. Power Consumption: 10W
Mounting: Wall/Pole
Night Mode: IR LED illumination and IR cut filter
Operating Temperature: -20°C to 50°C
PoE Input: 802.3af PoE
Power Input: 37-57V PoE
Resolution: 3840 x 2160 (16:9)
Sensor: 1/2" 8MP
Video Compression: H.264; MJPEG
Dimensions: Ø86 x 153.8 mm
Weight: 670g

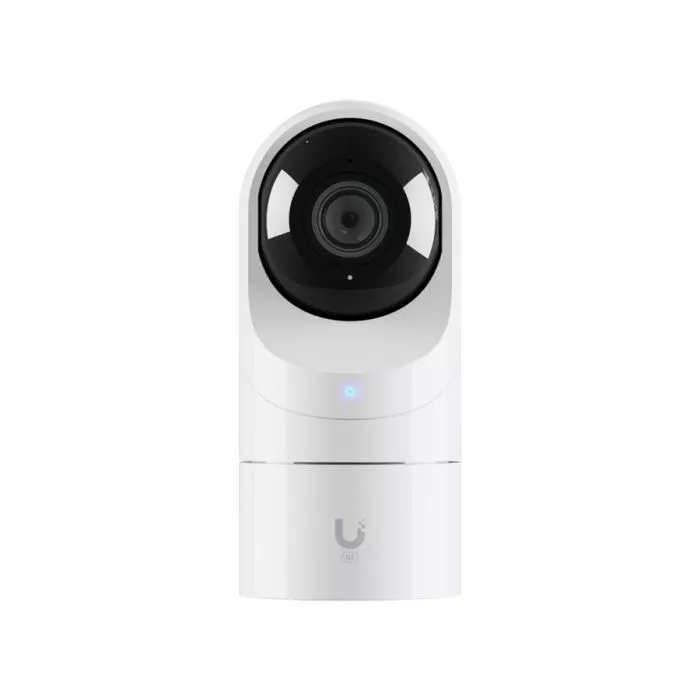

Ubiquiti's UVC-G5F features a 4MP image with a wide-angle (102.4°) lens in a weatherproof IPX4-rated enclosure. It features various mounting options for both indoor and outdoor installation and has infrared LEDs with an automatic IR cut filter.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed focal length
Max Frame Rate: 30 FPS
Microphone: Yes
Max. Power Consumption: 4W
Mounting: Desktop, wall, pole or hard-ceiling
Night Mode: IR LEDs with Mechanical IR Filter
Operating Temperature: -20°C to 40°C
PoE Input: 802.3af PoE
Power Input: 802.3af PoE (Not Included)
Resolution: 2688 x 1512
Sensor: 5MP CMOS sensor
Video Compression: H.264 ; MJPEG
Dimensions: Ø48 x 107.5 mm
Weight: 170g

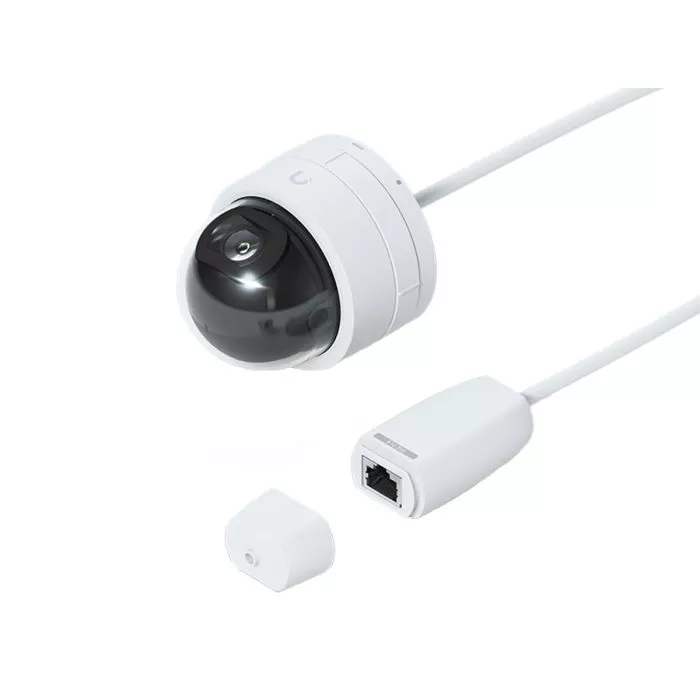

Ubiquiti's UVC-G5DU features an ultra-compact and tamper-resistant enclosure, a 4MP image with an ultra-wide-angle lens, 20m IR night vision as well as AI Detections.

It can be configured and managed using the UniFi Protect Application.

*Note: The G5 Dome Ultra is for indoor use only. PoE injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed Focal Length
Max Frame Rate: 30 FPS (Resolution Dependent)
Microphone: No
Max. Power Consumption: 4.2W
Mounting: Wall or Ceiling Mount
Night Mode: IR LEDs with Mechanical IR Cut Filter
Operating Temperature: -20°C to 40°C
PoE Input: 802.3af/at PoE
Power Input: 802.3af/at PoE
Resolution: 2688 x 1512
Sensor: 5MP CMOS Sensor
Video Compression: H.264; MJPEG
Dimensions: Ø63.6 x 68.2 mm
Weight: 175g

Ubiquiti's UVC-G5D features a 4MP image with a wide-angle lens, enhanced dynamic range and low-light performance. It is IK08 vandal-resistant with a built-in microphone and speaker. The camera has infrared LEDs with an automatic IR cut filter for both day and night surveillance.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed Focal Length
Max Frame Rate: 30 FPS (Resolution Dependant)
Microphone: Yes
Max. Power Consumption: 5W
Mounting: Wall or Ceiling Mount
Night Mode: IR LEDs with Mechanical IR Cut Filter
Operating Temperature: -20°C to 40°C
PoE Input: 802.3af/at PoE
Power Input: 802.3af/at PoE
Resolution: 2688 x 1512
Sensor: 5MP CMOS Sensor
Video Compression: H.264 ; MJPEG
Dimensions: Ø109.2 x 64.5 mm
Weight: 390g

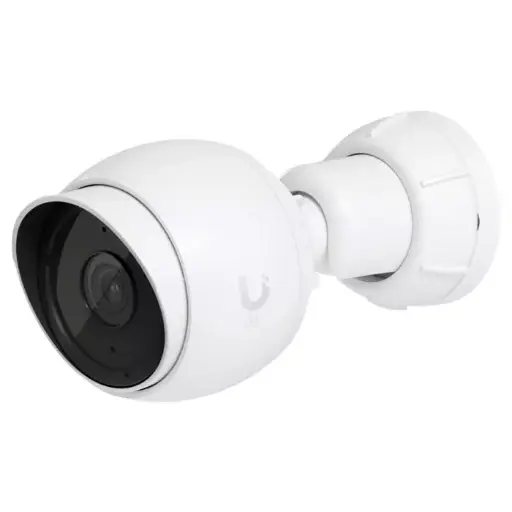

Ubiquiti's UVC-G5B features a 4MP image with a built-in microphone and a versatile 3-axis mount that enables quick and easy adjustment for both indoor and outdoor mounting. The camera has infrared LEDs with an automatic IR cut filter for both day and night surveillance up to 10 meters.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100
Hardware Button: Reset
Lens: Fixed Focal Length
Max Frame Rate: 30 FPS (Resolution Dependent)
Microphone: Yes
Max. Power Consumption: 4W
Mounting: Wall/Pole
Night Mode: IR LED illumination and IR cut filter
Operating Temperature: -20°C to 40°C
PoE Input: 802.3af PoE
Power Input: 37-57V PoE
Resolution: 2688 x 1512 (16:9)
Sensor: 5MP CMOS Sensor
Video Compression: H.264; MJPEG
Dimensions: : Ø75.5 x 150 mm
Weight: 315g

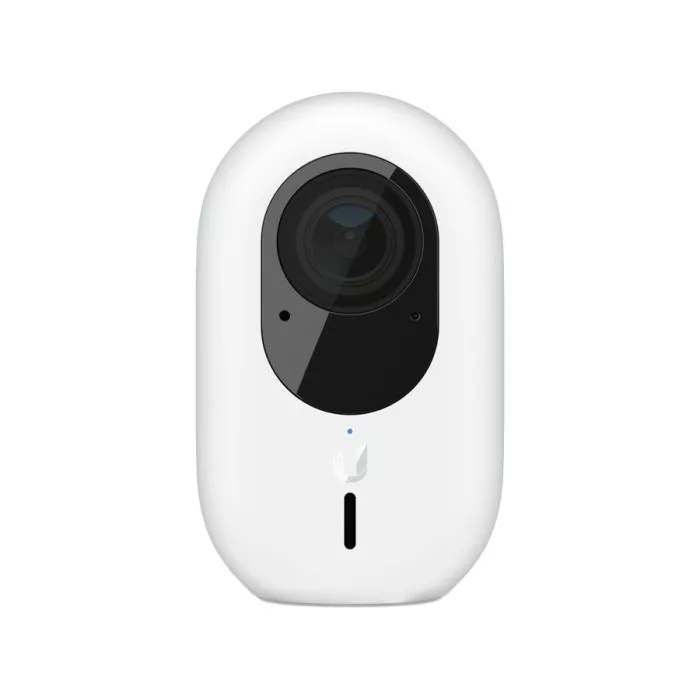

Ubiquiti's UVC-G4INS is a compact, wide-angle, 5MP image, weather-resistant Wi-Fi IP Camera with two-way audio. The camera has infrared LEDs with an automatic IR cut filter for both day and night surveillance.

It can be configured and managed using the UniFi Protect Application.

Specifications

Ethernet Ports: None
Hardware Button: Reset
Lens: Fixed focal length EFL 2.8 mm, f/1.6
Max Frame Rate: 30 FPS (Resolution Dependant)
Microphone: Yes
Max. Power Consumption: 6W
Mounting: Wall Mount
Night Mode: Built-in IR LED illumination and IR cut filter
Operating Temperature: -20°C to 40°C
PoE Input: None
Power Input: 5V, 2A USB Adapter (Included)
Resolution: 2688 x 1512 (16:9)
Sensor: 5 MP CMOS Sensor
Video Compression: H.264/MJPEG
Dimensions: 81.6 x 50 x 47.2 mm
Weight: 163g

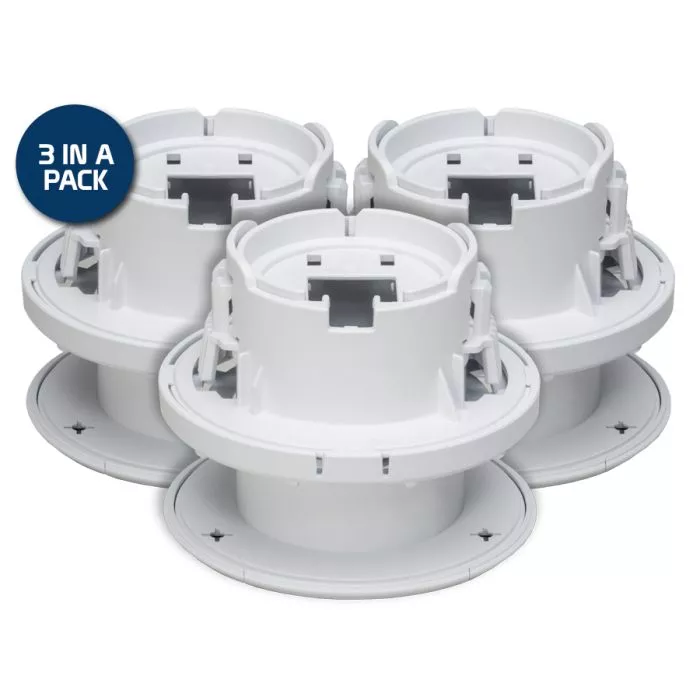

Ubiquiti's UVC-G3FLEX-CM3 is a recessed ceiling mount accessory for the UVC-G3FLEX or UVC-G5F cameras. Mount your camera inside the ceiling or a ceiling tile for a clean, low-profile installation. Includes mounting hardware for drywall, solid surface, or ceiling tile installation. An optional screw locks the camera to the mount from above for added security.

The UVC-G3FLEX-CM3 is packaged to include 3 units per pack.
SKU UVC-FLEX-CM3
Manufacturer Ubiquiti
Manufacturer Product Code UVC-G3-F-C-3
Specifications N/A

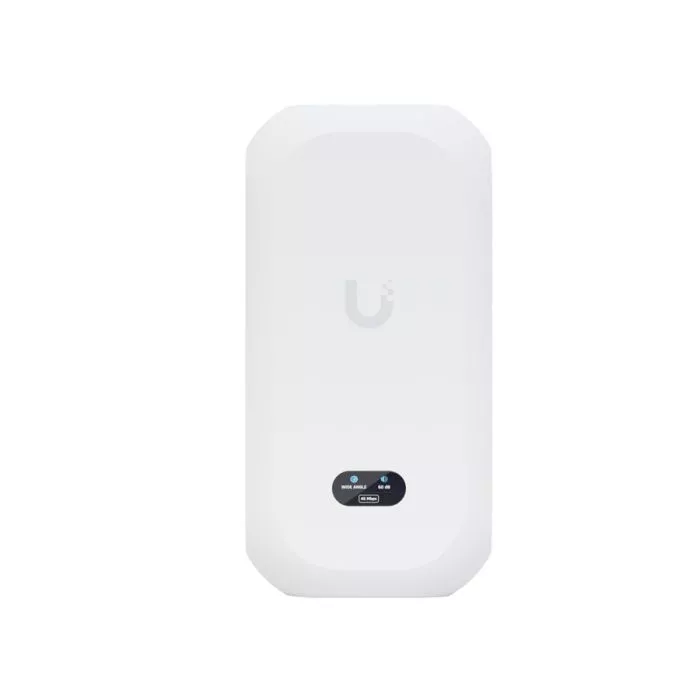

Ubiquiti's UVC-AITH is a remote processing hub compatible with any AI Theta Lens. The unit includes a 1-metre proprietary Theta cable for connecting the lens.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 12.5W
Mounting: Wall or Ceiling Mount
Operating Temperature: -20°C to 40°C
PoE Input: 37-57V Passive PoE
Power Input: 37-57V PoE
Video Compression: H.264
Dimensions: Hub: 140 x 70 x 38 mm
Weight: 365g

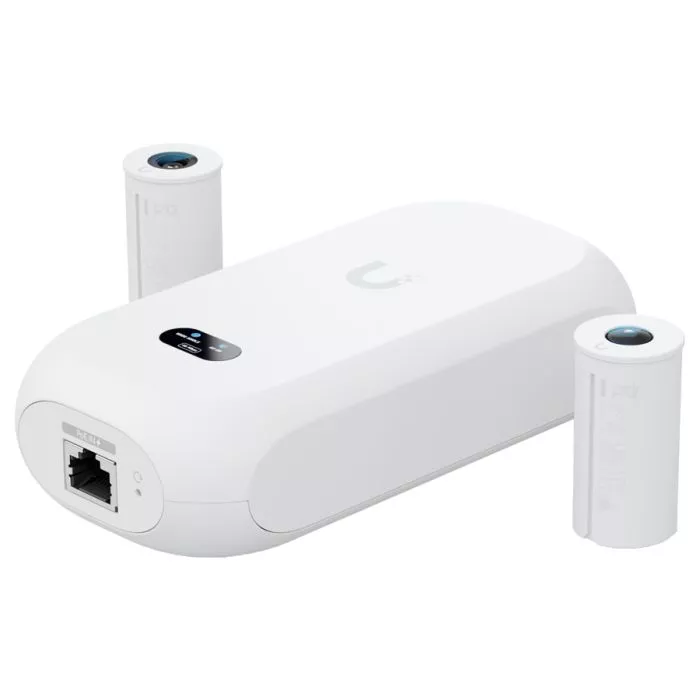

Ubiquiti’s UVC-AIT offers the choice between an 8MP wide-angle wall-mounted lens or a 12MP 360° fisheye lens for ceiling-mounted applications. The chosen lens module connects to the hub via the included 1-metre proprietary Theta cable. A second Theta hub can be purchased if the user wishes to install both lenses.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included & Theta lenses do no support IR night Vision.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Lens: Fixed Focal Length
Max Frame Rate: AI-Theta: 24 FPS; AI-Theta-360°: 20 FPS
Microphone: Yes
Max. Power Consumption: 12.25W
Mounting: Wall or Ceiling Mount
Night Mode: None
Operating Temperature: -20°C to 40°C
PoE Input: 37-57V Passive PoE
Power Input: 37-57V PoE
Resolution: AI-Theta: 3264 x 2448 (4:3); AI-Theta-360°: 2560 x 2560 (1:1)
Sensor: AI-Theta: 8MP; AI-Theta-360°: 12MP
Video Compression: H.264; MJPG
Dimensions: Hub: 140 x 70 x 38 mm; Lens/360°: Ø22.8. x 43.5 mm
Weight: 392g

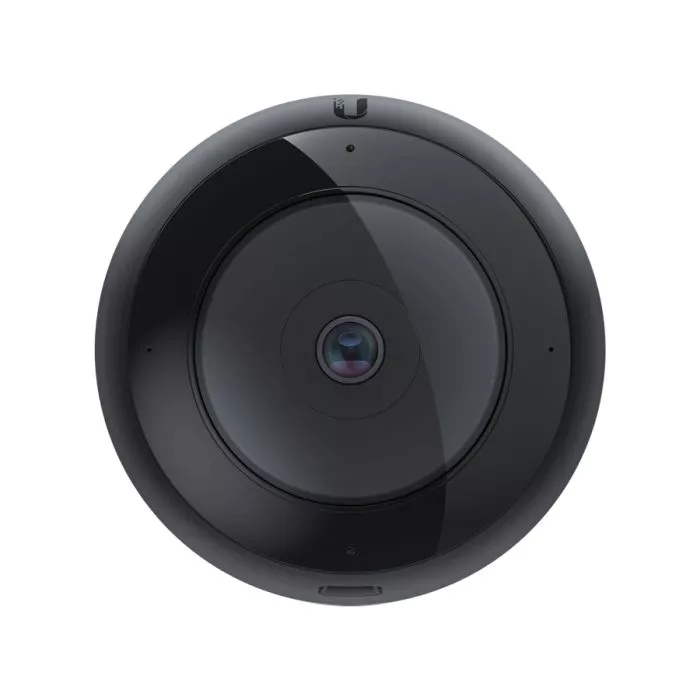

Ubiquiti's UVC-AI360 is a pan-tilt-zoom (PTZ) IP camera providing panoramic, overhead surveillance of heavily populated areas. Equipped with a 5 MP CMOS sensor and an ultra-wide 360° fisheye lens, it streams sharp 1920x1920 video at 30 frames per second (FPS). It also features built-in IR LEDs for night mode. The IPx4 weather-resistant housing and IK08-rated tamper resistance allow it to be mounted both indoors and outdoors.

It can be configured and managed using the UniFi Protect Application.

*Note: PoE Injector not included.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Lens: 360° Fisheye lens
Max Frame Rate: 30 FPS (Resolution Dependent)
Microphone: Yes
Max. Power Consumption: 8.64W
Mounting: Ceiling or Wall-Mount (Included)
Night Mode: IR LED illumination and IR cut filter
Operating Temperature: -20° to 40° C
PoE Input: 802.3af
Power Input: 802.3af
Resolution: 1920 x 1920
Sensor: 5 MP CMOS sensor
Video Compression: H.264, MJPG
Dimensions: Ø147 x 49 mm
Weight: 0.68Kg

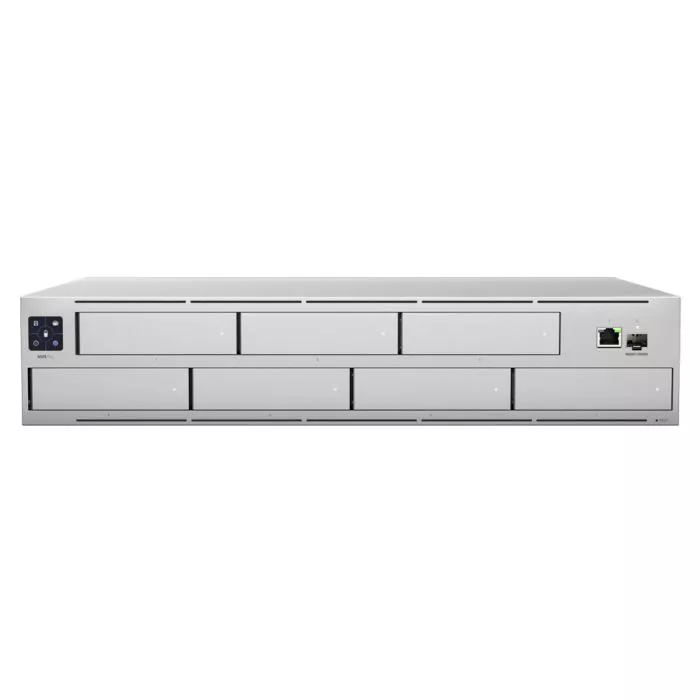

Ubiquiti's UVC-NVRPRO is a Network Video Recorder and UniFi OS Console. It runs the pre-installed UniFi Protect Application and makes provision for up to 7 compatible 2.5'' or 3.5'' hard drives. The UVC-NVR-PRO also features 1x SFP+, 1x Gigabit Ethernet Port and a 1.3” touchscreen display.

*Note: Hard drives are not included. Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in the list of incompatible models.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 160W
Mounting: Rack-Mount
Operating System: UniFi Protect
Operating Temperature: -5 to 40° C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range:100-240V
USB Ports: None
Dimensions: 442 x 325 x 87 mm
Weight: 9.45Kg

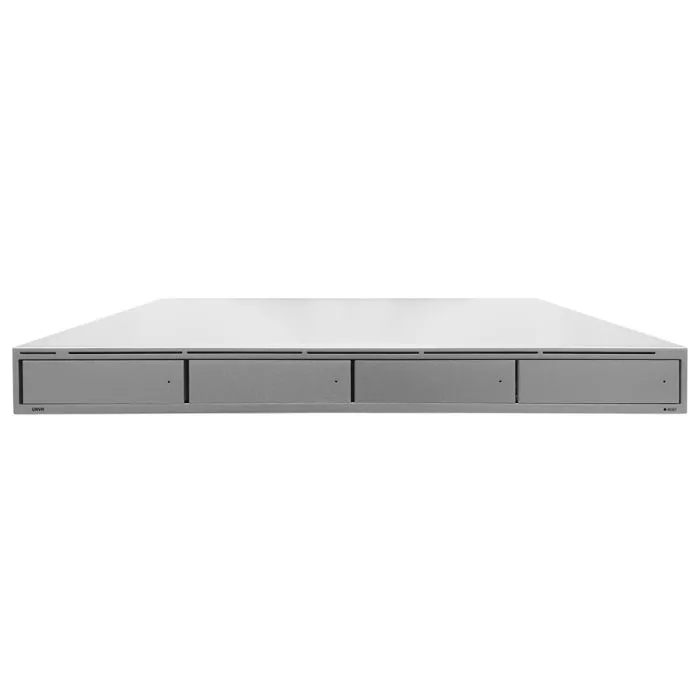

Ubiquiti's UVC-NVR is a Network Video Recorder and UniFi OS Console. It runs the pre-installed UniFi Protect Application and makes provision for up to 4 compatible 2.5” or 3.5" hard drives.

*Note: Hard drives are not included. Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in the list of incompatible models.

Specifications

Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi Protect
Operating Temperature: -5 to 40° C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz
Serial Interface: None
SFP Ports: 1x 10Gbps
Supported Voltage Range:100-240V
System Memory: 4GB DDR4
USB Ports: None
Dimensions: 442.4 x 325 x 43.7mm
Weight: 5.20kg

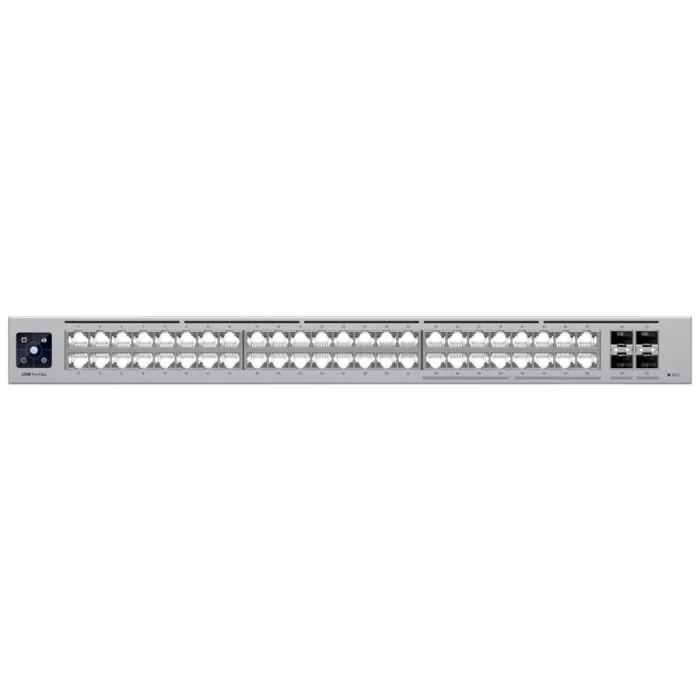

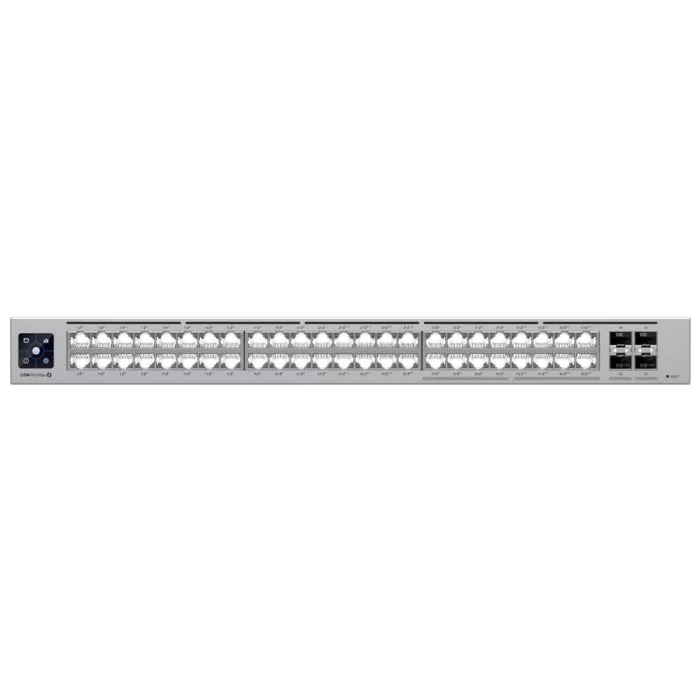

Ubiquiti's USW-MAX48P is a 48 port, fully managed, Layer 3 Etherlighting™ switch. The unit features a 720W PoE budget with 32 Gigabit PoE Ports (24x PoE+ and 8x PoE++), 16x 2.5Gbps PoE ports (8x PoE+ and 8x PoE++) and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 32x 10/100/1000; 16x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps Ports: 8x 802.3af/at/bt ; 8x 802.3af/at ; Gigabit Ports: 24x 802.3af/at ; 8x 802.3af/at/bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

Ubiquiti's USW-MAX48 is a 48 port, fully managed, Layer 3, Ether lighting™ switch. The unit features 32x Gigabit Ports, 16x 2.5Gbps ports and 4x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fiber uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 32x 10/100/1000; 16x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 100W
Mounting: Rackmount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 4x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

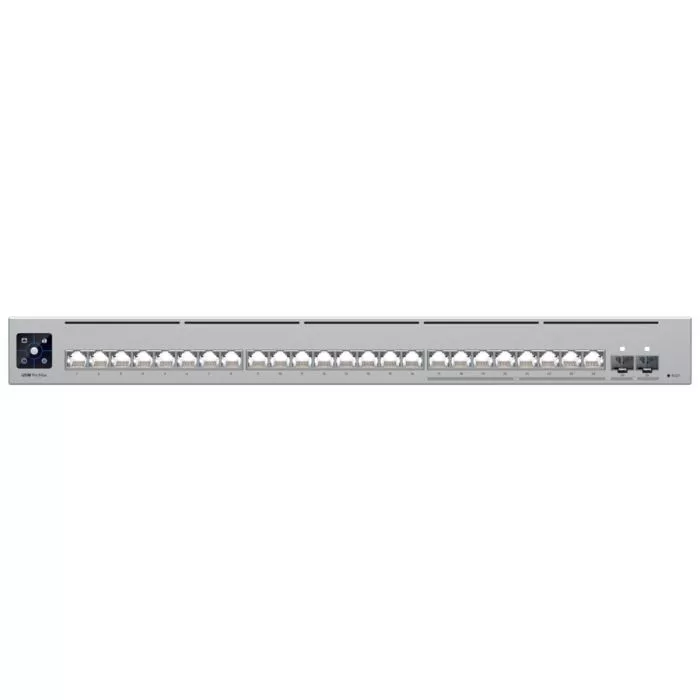

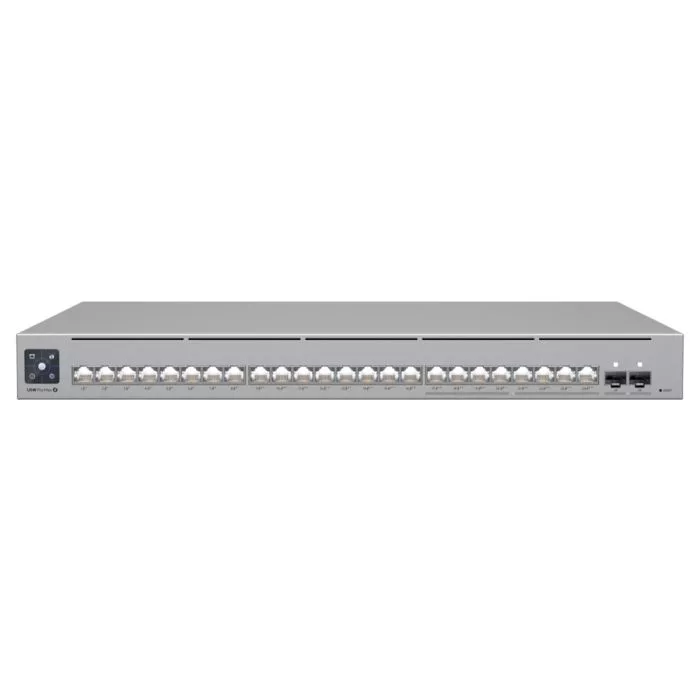

Ubiquiti's USW-MAX24P is a 24 port, fully managed, Layer 3 Etherlighting™ switch. The unit features a 400W PoE budget with 16 Gigabit PoE Ports (8x PoE++ and 8x PoE+), 8x 2.5Gbps PoE++ ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps PoE links to your WiFi 6 devices as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 16x 10/100/1000; 8x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps: 8x 802.3af/at/bt ; Gigabit: 8x 802.3af/at ; 8x 802.3af/at/bt
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44mm
Weight: 5.2kg

Ubiquiti's USW-MAX24 is a 24 port, fully managed, Layer 3, Etherlighting™ switch. The unit features 16x Gigabit Ports, 8x 2.5Gbps ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fibre uplinks to your network.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 16x 10/100/1000; 8x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 442 x 325 x 44 mm
Weight: 5.2kg

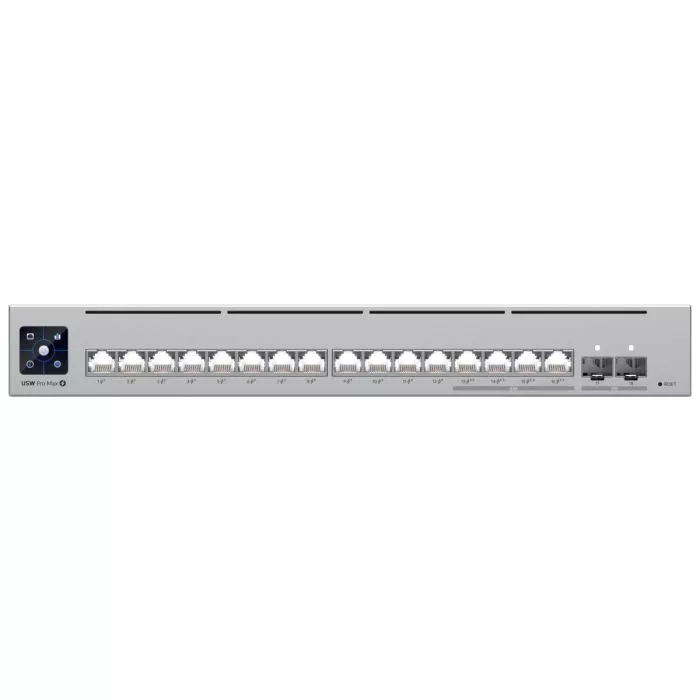

Ubiquiti's USW-MAX16P is a 16 port, fully managed, Layer 3 Etherlighting™ switch. The switch includes a rack-mount kit for 10-inch racks and wall mounting. The UACC-MAX16P-RM accessory makes provision for 19 inch rack-mount deployments. The unit features a 180W PoE budget with 12x Gigabit PoE+ (802.3af/at) Ports, 4x 2.5Gbps PoE++ (802.3af/at/bt) ports and 2x SFP+ Uplink Ports. It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: 2.5Gbps: 4x 802.3af/at/bt ; Gigabit: 12x 802.3af/at
Power Input: 1x 54V, 3.9A, 210W DC adapter (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 54V
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 2.1kg

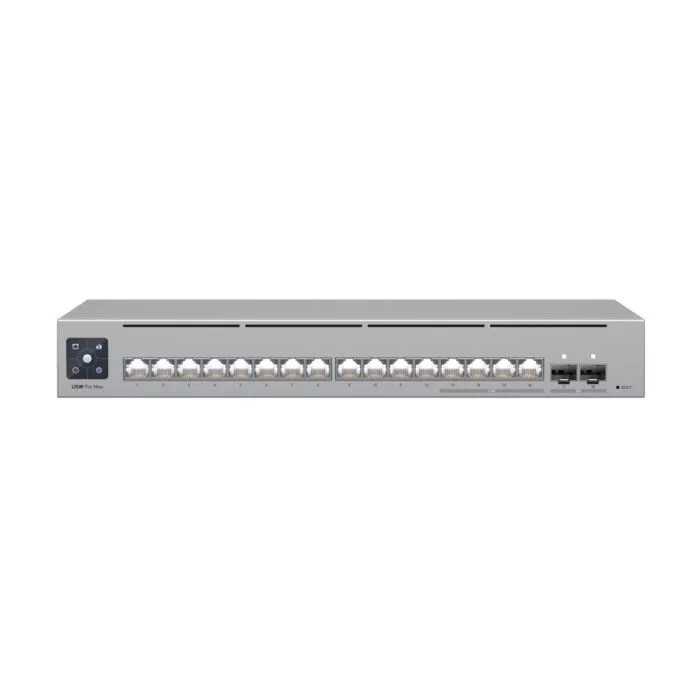

Ubiquiti's USW-MAX16 is a 16 port, fully managed, Layer 3, Etherlighting™ switch. The unit features 12x Gigabit Ports, 4x 2.5Gbps ports and 2x SFP+ uplink Ports. This configuration makes provision for 2.5Gbps Ethernet as well as 10Gbps fibre uplinks to your network.

Note: It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 12x 10/100/1000; 4x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 50W
Mounting: Desktop & 10-Inch Wall-Mount, or 19-Inch Rack Mount with UACC-MAX16P-RM (Not Included)
Operating System: UniFi
Operating Temperature: -5°C to 40°C
PoE Input: None
PoE Output: None
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 2x 10Gbps
Supported Voltage Range: 100V to 240V
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 1.95kg

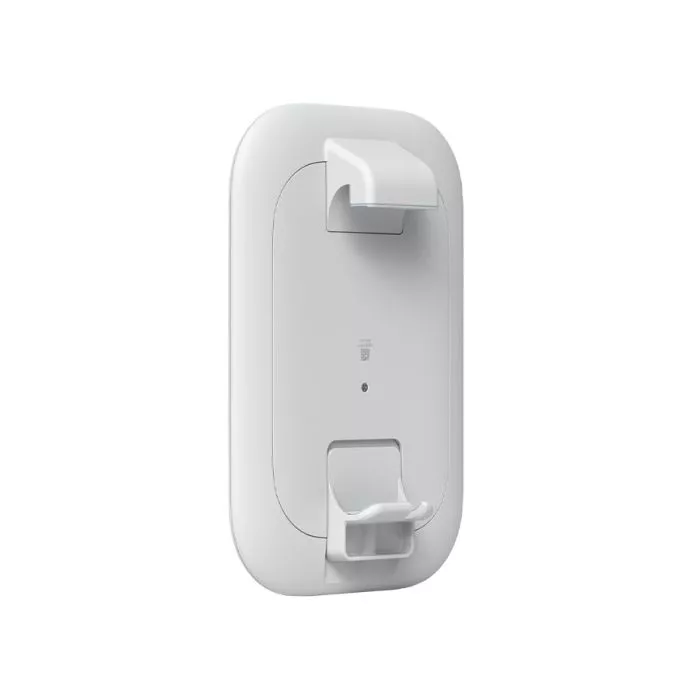

Ubiquiti's UACC-UKPA is an IPx6, clip-on external antenna for the Swiss Army Knife (UK-ULTRA) that provides extended 90-degree directional coverage.
SKU UACC-UKPA
Manufacturer Ubiquiti
Manufacturer Product Code UACC-UK-Ultra-Panel-Antenna

Specifications

Antenna Gain: 2.4GHz: 10dBi ; 5.8GHz: 15dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Wind Loading: 75 N at 200 km/h
Dimensions: 138 x 207 x 43 mm
Weight: 450g

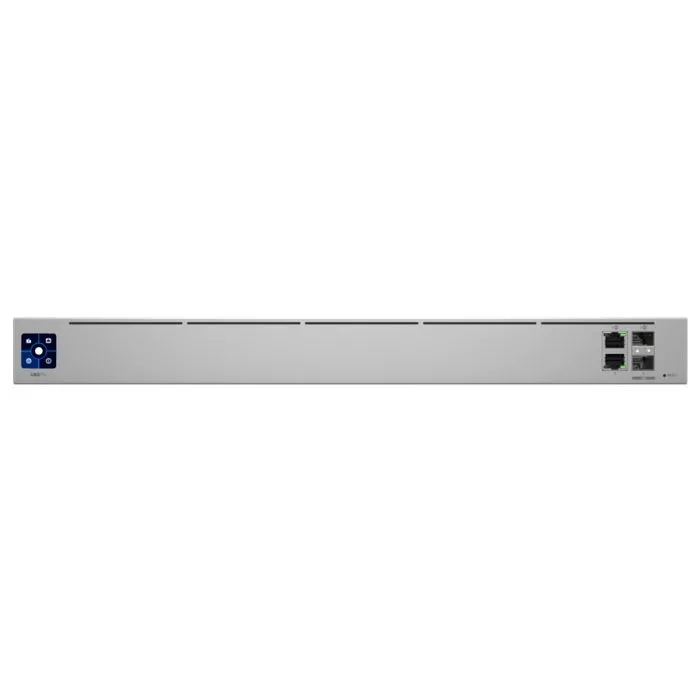

Ubiquiti's UXG-PRO features a 1.7GHz quad-core processor, 1x Gigabit Ethernet and 1x SFP+ WAN ports with failover support. It also features 1x Gigabit and 1x SFP+ LAN Ports to support the most bandwidth-intensive applications. It offers a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and a layered firewall configuration.

It can be configured and managed with the UniFi Network Application.

Specifications

Ethernet Ports: 1x 10/100/1000 (WAN) : 1x 10/100/1000 (LAN)
Hardware Button: Reset
Max. Power Consumption: 30W
Mounting: Rack-Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: None
Power Input: IEC Power Cord (Included)
Processor: Quad-core 1.7GHz
Serial Interface: None
SFP Ports: 1x 10Gbps SFP+ (WAN) : 1x 10Gbps (LAN)
Supported Voltage Range: 200V–240V
System Memory: 2GB DDR4 RAM
USB Ports: None
Other: 1x IEC SmartPower outlet (200~240VAC/1.25A)
Dimensions: 442.4 x 43.7 x 285.6 mm
Weight: 3.42kg
